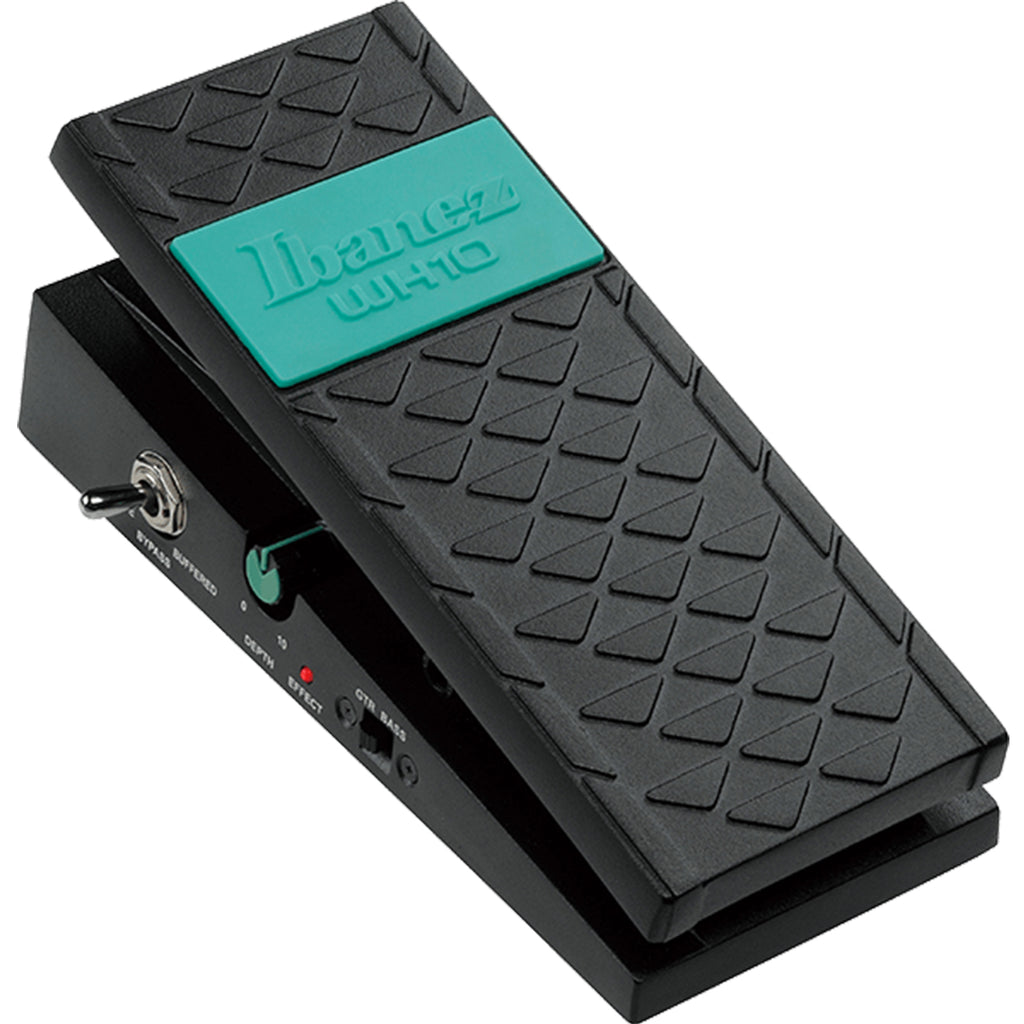

WH10 series has remained a highly popular pedal due to its unique features: guitar/bass range switch, mix control, and multiple feedback opamp circuit. The guitar/bass range switch enable the user to select the frequency range the pedal affects. The guitar mode is from 350Hz to 2.2kHz and bass mode is from 175Hz to 1.1kHz. A mix knob allows control over the intensity of the wah sound. The WH10 series also is the first Wah pedal to utilize a multiple feedback opamp circuit. This creates a much different sound when compared to the more common inductor based wah. It also includes a volume boost for added flexibility.
The WH10V3 also features a new switchable bypass. This allows the user to select either true bypass or buffered bypass. In true bypass mode, there is no loss of signal strength/frequencies. For those concerned about any noise when engaging the pedal in true bypass mode, players also have the option to use the same buffered bypass from the previous V2 model. The WH10V3 features a highly-durable, Die-cast Aluminum body with a distinctive black finish.
Effect ON/OFF (Foot switch), Guitar/Bass mode (Slide switch), Buffered/True Bypass (Lever switch)
Power Consumption: 12mA@9V
Power supply: One 9 volt battery or External DC 9 volt AC adapter
•Switches: Effect ON/OFF, Frequency range(Guitar/Bass), Buffered/True Bypass
•I/O's: Input, Output Input is on the right side. Output is on the left side.
•Size: 100(W) x 202(D) x 84(H)(mm)
•Power Consumption: 12mA@9V
•Power supply: One 9 volt battery or External DC 9 volt AC adapter
