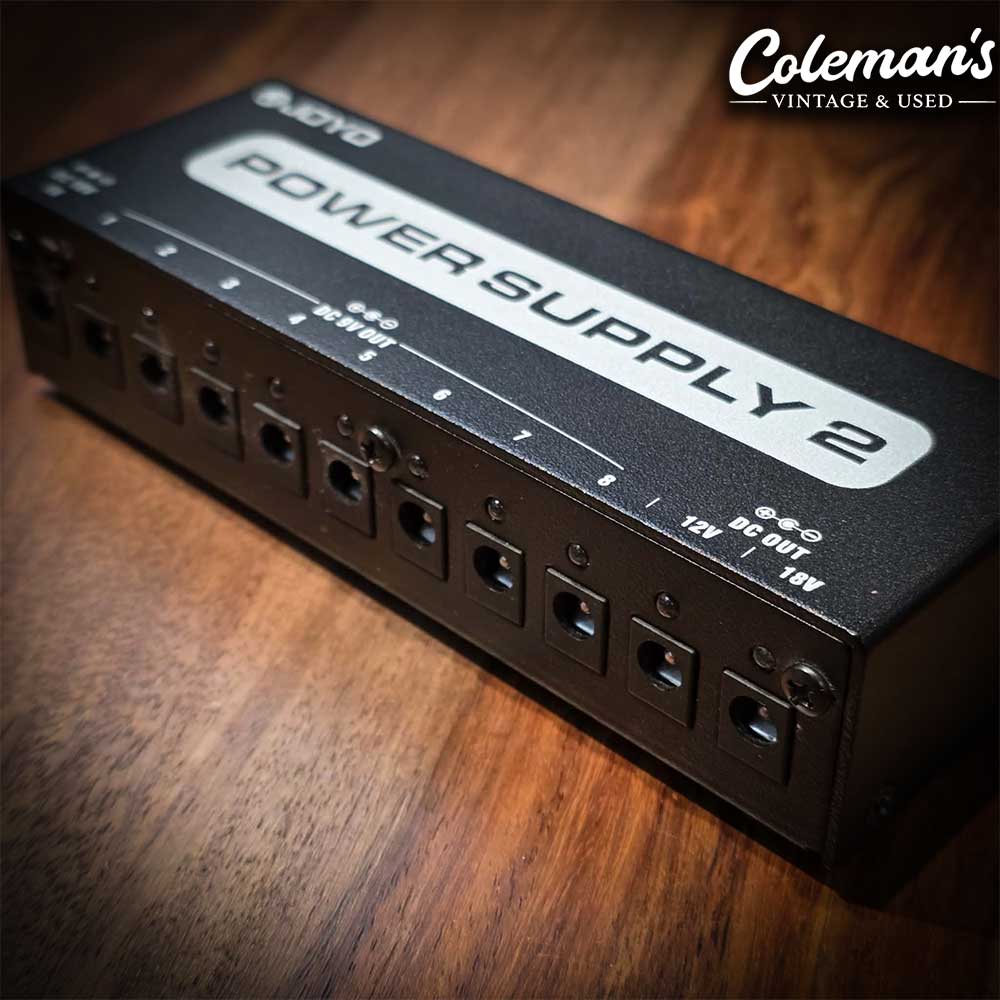

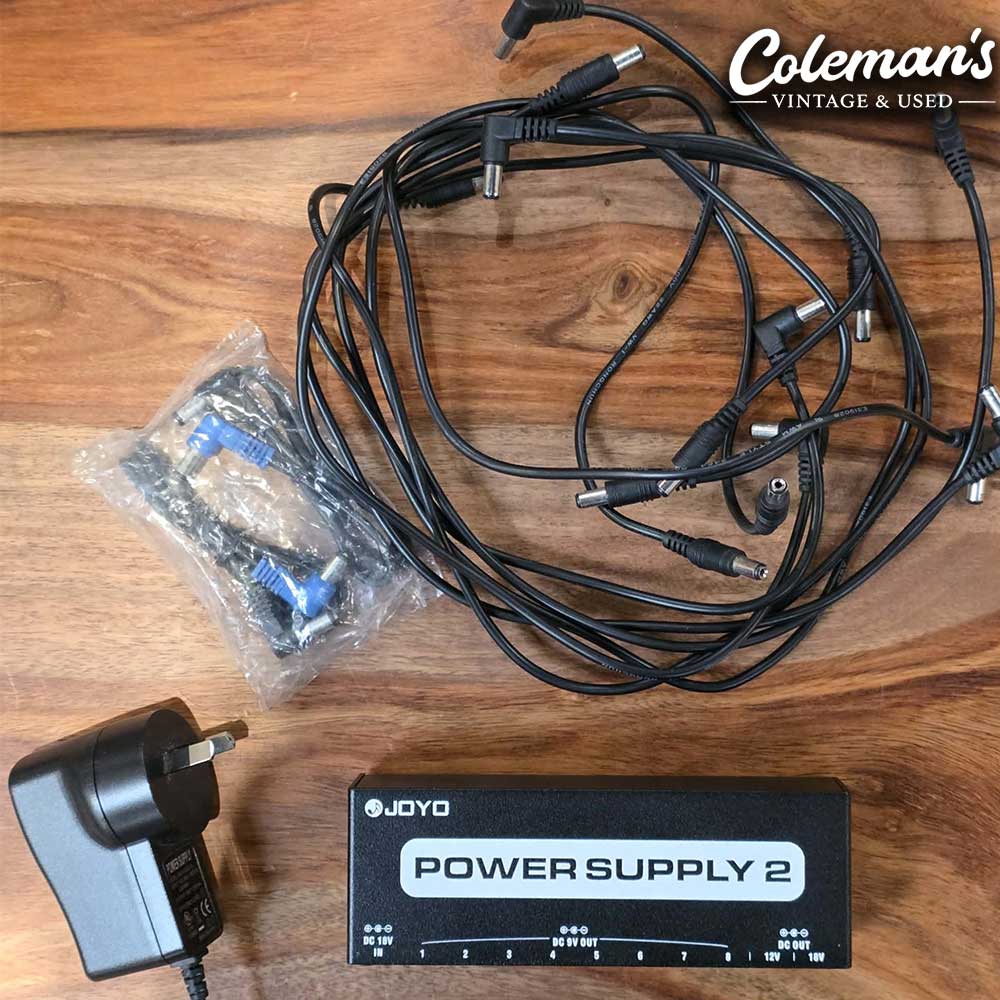

PRELOVED JOYO JP-02 Power Supply 2
The JOYO JP-02 Power Supply 2 is a practical pedalboard power supply for players who want to run multiple pedals from one compact unit. With 10 DC outputs, options for 9V, 12V and 18V pedals, and built-in short-circuit / overcurrent protection, it is a useful upgrade from a basic daisy-chain setup.
It is a great choice for players building a compact board with overdrives, tuners, modulation, delay, reverb and other standard pedalboard effects. The blue LED indicators also make it easy to see which outputs are active on a dark stage or rehearsal room floor.
Key Features
- JOYO JP-02 Power Supply 2
- 10 filtered DC pedal outputs
- Multiple voltage options: 9V, 12V and 18V
- Seven 9V outputs for standard low-current pedals
- One higher-current 9V output for pedals needing more power
- Dedicated 12V and 18V outputs
- Short-circuit and overcurrent protection
- Blue LED indicators for each output
- Compact pedalboard-friendly design
- Helps reduce cable clutter compared with running individual adaptors
- Great for small to medium pedalboards
Output Layout
- Outputs 1–7: 9V DC / 100mA
- Output 8: 9V DC / 500mA
- Output 9: 12V DC / 100mA
- Output 10: 18V DC / 100mA
Specifications
- Model: JOYO JP-02 Power Supply 2
- Type: Pedalboard power supply
- Total Outputs: 10
- Voltage Options: 9V, 12V and 18V DC
- Protection: Short-circuit / overcurrent protection
- Indicators: Blue LED output indicators
- Output Polarity: Centre-negative for standard pedal use
- Dimensions: Approx. 158mm x 55mm x 33mm
Important Power Note
Always check your pedal’s required voltage, polarity and current draw before connecting it. Most common pedals use 9V centre-negative power, but some pedals require higher current, 12V or 18V. Do not connect a 9V-only pedal to the 12V or 18V outputs.
Why Players Like It
The JP-02 is a handy power solution for players who want a cleaner, tidier pedalboard without spending boutique power-supply money. The mix of 9V, 12V and 18V outputs makes it flexible for different pedal types, while the LED indicators are useful when checking your board at a gig.
It is especially useful for overdrive-heavy boards, small gigging boards, home setups and players moving away from separate wall adaptors.
