XVIVE V21 Echoman Delay Pedal

XVIVESKU: 210000067397

Sale price$179.00

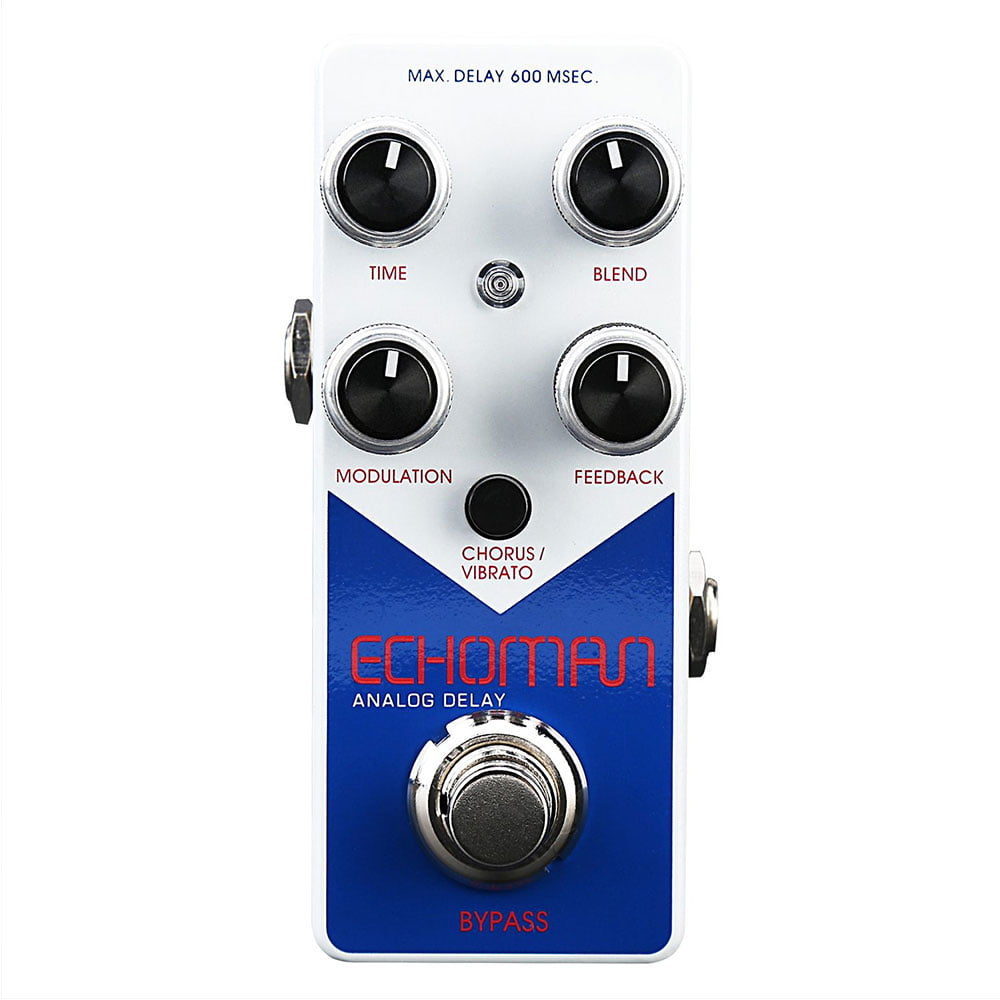

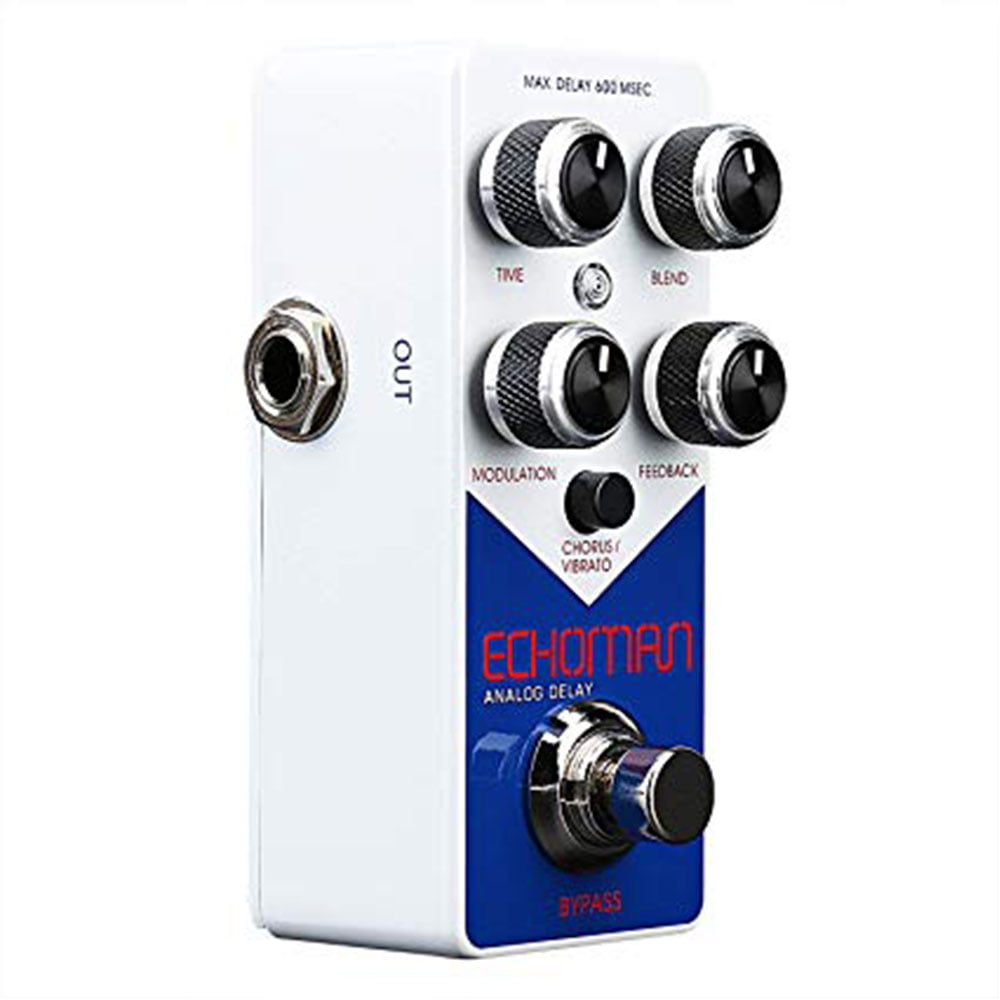

The Xvive V21 Echoman Vintage Pure Analog Delay guitar effect pedal.
Echoman uses two Xvive BBD3005 chips, classical analog circuit sound, 600 ms delay time, with Chorus/Vibrato modulation effect, to add a deeper atmosphere to your sound. With FEEDBACK , Time Knob , more effect can be brought out.

  • XVIVE Audio proprietary chip design ( MN3005 BBD).
  • Up to 600 msec of delay time with no aliasing distortion.
  • Buffered bypass with a 900K input impedance
  • Wide bandwidth - good high frequency response even at long delay settings.
  • Feedback control allows self-oscillation if desired.
  • Blend control allows adjusting the output from dry signal only to delayed signal only.
  • High-tech filtering and noise reduction circuitry an excellent signal to noise ratio, even at long delay settings.
  • TRUE BYPASS Footswitch: Push down the footswitch to switch between effects and bypass status.
  • ON/OFF LED: V21 On and Off. Blue LED Modulation is Chorus, Red is Vibrato.
  • DC IN Power Jack: For power supply, use a 9-volt DC regulated AC adapter(plug polarity is positive on the barrel and negative in the center)
  • INPUT Jack:1/4” mono audio jack. For connect ing guitar.
  • OUTPUT Jack: 1/4” mono audio jack, outputs the signal.
  • Blend Knob: Mix the input level and delay level
  • Feedback Knob: Adjust the feedback of delay effects.
  • Time Knob: Adjust the delay time. Max is 600ms.
  • Modulation: Adjust the Chorus or Vibrato effect.
  • Chorus/Vibrato: Switch to Chorus or Vibrato.
