Description

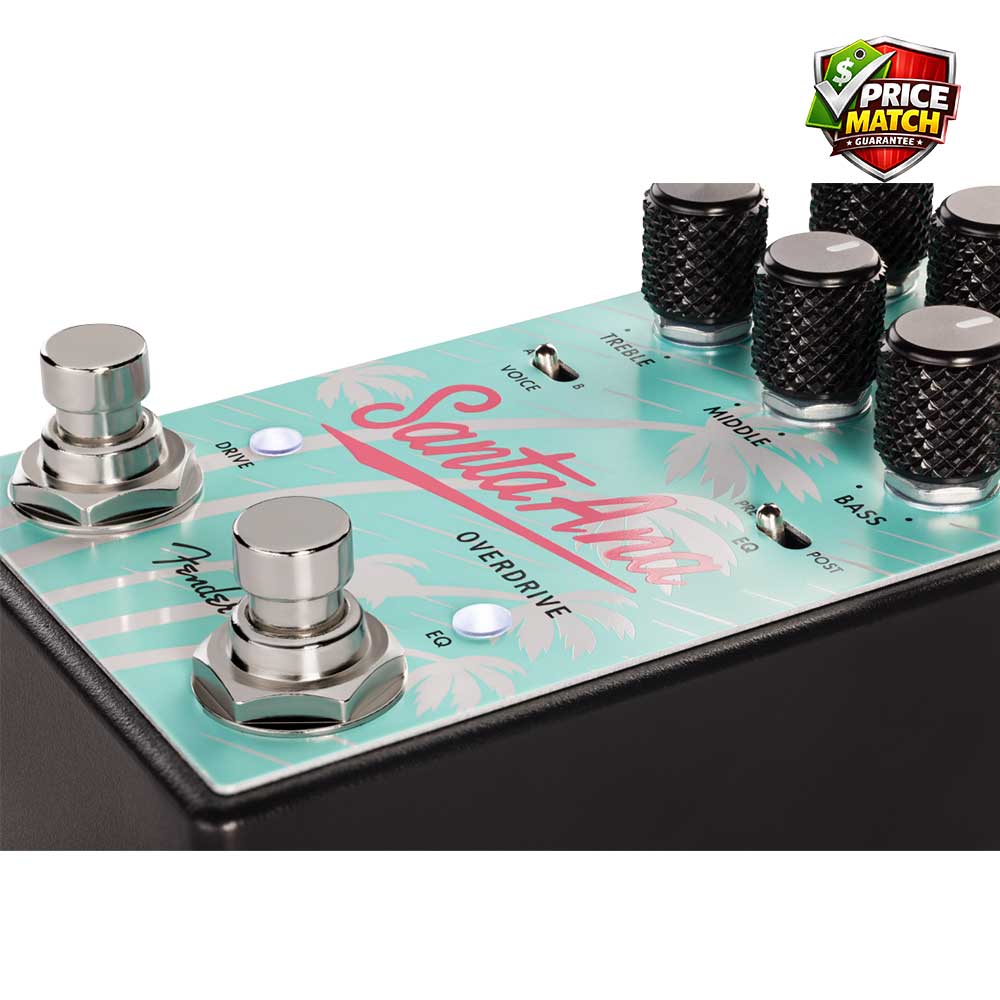

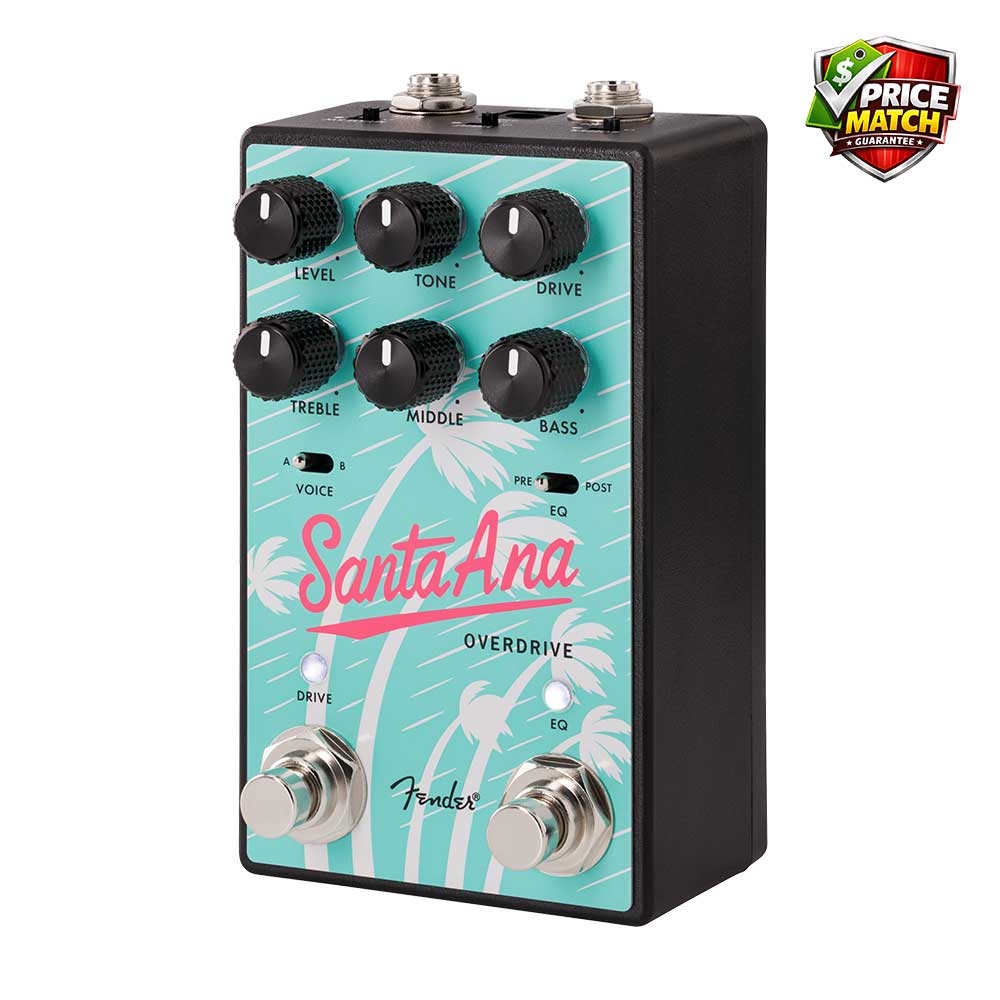

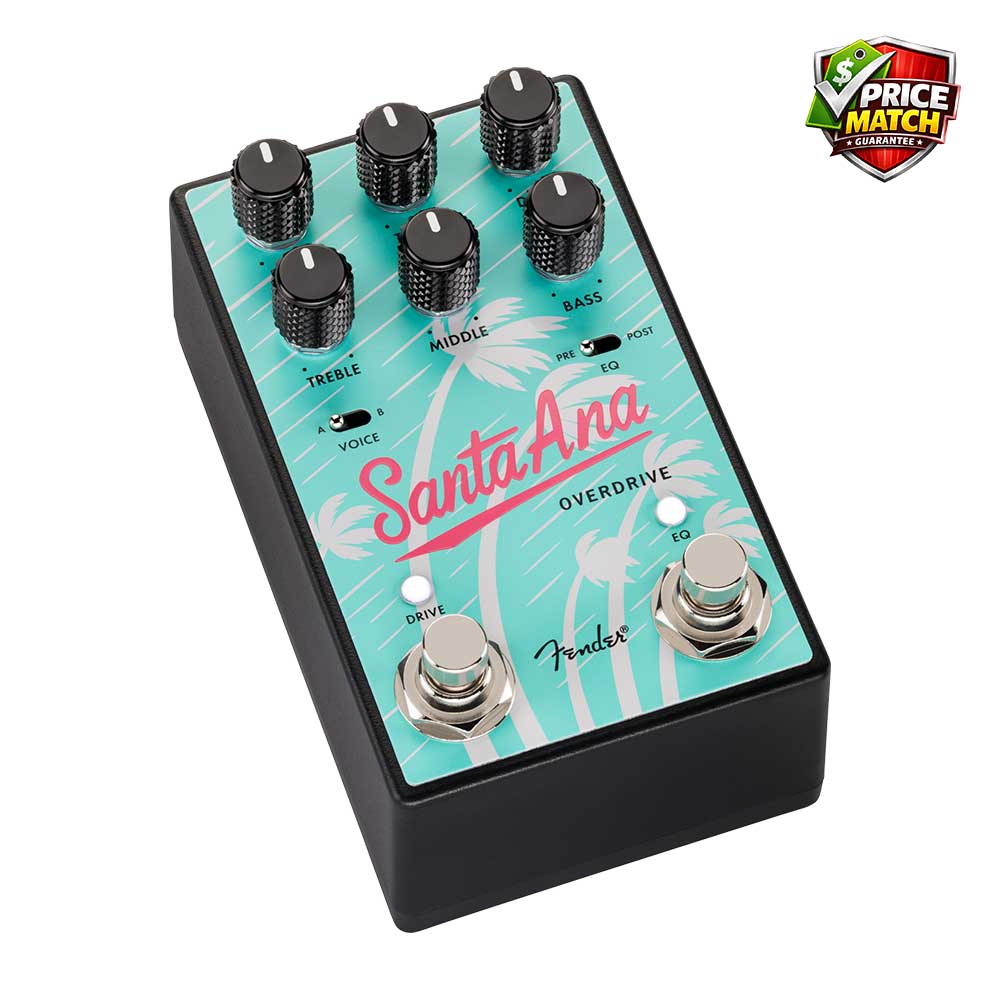

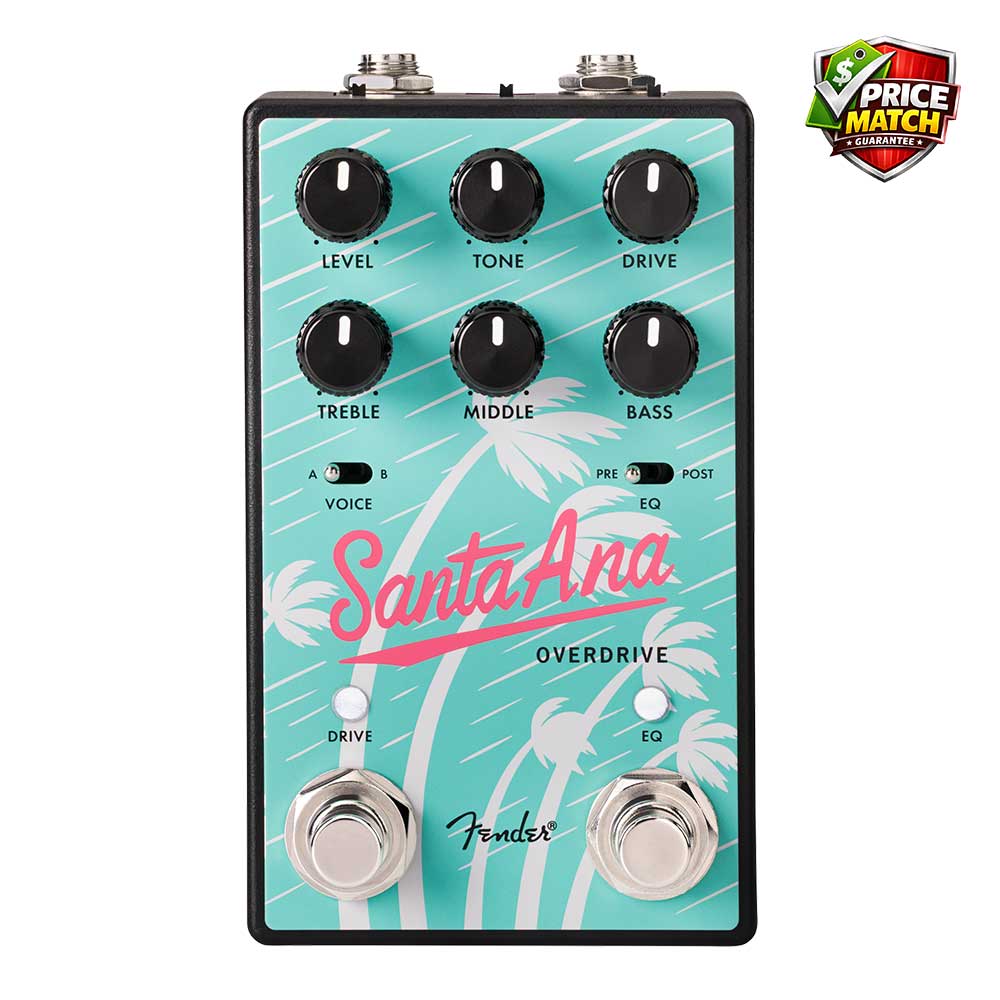

Fender Santa Ana Overdrive V2
The Fender Santa Ana Overdrive V2 is a flexible JFET-based Class-A overdrive pedal designed to deliver the feel and response of a cranked Fender tube amp.
Running at 18V internally for extra headroom, the Santa Ana V2 gives players a dynamic, touch-sensitive drive sound that can move from natural overdrive through to thicker lead tones with ease.
Whether you want a tight rhythm drive, a smooth solo boost or a highly adjustable overdrive that works across different amps and guitars, the Santa Ana V2 gives you plenty of tone-shaping power in one pedal.
Tube-Like Feel and Response
The Santa Ana V2 is built around a JFET drive circuit designed to feel open, responsive and amp-like.
The internal 18V operation gives the pedal more headroom, helping it stay clear and dynamic while still delivering satisfying overdrive.
It responds well to picking attack and guitar volume changes, making it a great choice for players who want their drive pedal to feel expressive rather than stiff or compressed.
Two Overdrive Voices
The Voice switch gives you two different drive characters to work with.
Voice A delivers a natural-sounding, tighter overdrive that works well for rhythm playing, edge-of-breakup tones and more focused drive sounds.
Voice B gives you a smoother, thicker lead voice with more body and sustain, making it ideal for solos and bigger gain tones.
Independent 3-Band EQ
One of the standout features of the Santa Ana V2 is its independently switchable 3-band EQ.
Bass, Middle and Treble controls let you cut or boost key frequency ranges, with centre detents to help you quickly find a flat starting point.
This EQ section can be switched on or off independently, giving you the option to use the Santa Ana V2 as both an overdrive pedal and a flexible tone-shaping tool.
Pre or Post Drive EQ Placement
The EQ Placement switch lets you choose whether the 3-band EQ sits before or after the overdrive circuit.
Set before the drive, the EQ changes the way the overdrive reacts by shaping which frequencies hit the gain stage harder.
Set after the drive, the EQ shapes the final driven sound more dramatically, letting you fine-tune the pedal for different amps, guitars and stage mixes.
Built for Real Pedalboards
The Santa Ana V2 includes top-mounted jacks, a road-ready aluminium enclosure and switchable true or buffered bypass modes.

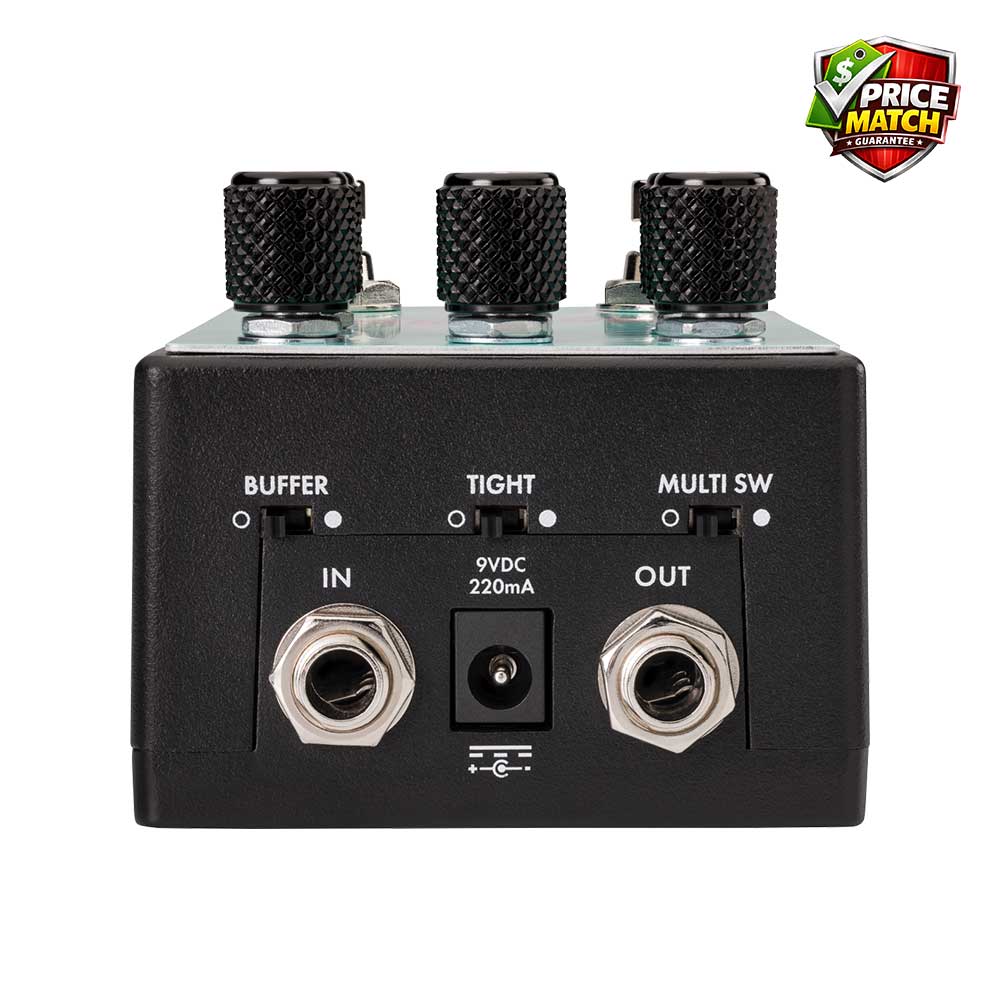

The rear-mounted Tight switch helps remove some low-end before the drive section for a more focused feel, especially useful with humbuckers or darker amps.
The rear Multiswitch option also allows latching or momentary footswitch operation, giving players extra control for live use.
Key Features
- JFET-based Class-A overdrive pedal
- Runs at 18V internally for high-headroom performance
- Designed for tube-like feel and response
- Two distinct overdrive voices
- Voice A for natural, tighter overdrive
- Voice B for smoother, thicker lead tones
- Drive, Tone and Level controls
- Rear-mounted Tight switch for a more focused drive response
- Independently switchable 3-band EQ
- Active Bass, Middle and Treble controls with centre detents
- EQ Placement switch for pre-drive or post-drive EQ
- Switchable true or buffered bypass
- Relay-based auto-bypass when no power is present
- Multiswitch-enabled footswitches for latching or momentary activation
- Top-mounted jacks
- Road-ready aluminium enclosure
- Powered by 9V centre-negative adaptor
- Power supply not included
Who Is It For?
The Fender Santa Ana Overdrive V2 is ideal for:
- Guitarists wanting amp-like overdrive feel
- Players chasing Fender-style pushed tube amp tones
- Guitarists who want detailed EQ control from a drive pedal
- Pedalboard users needing top-mounted jacks
- Blues, rock, indie, country and worship players
- Lead players wanting a thicker solo voice
- Players who use different amps and need a flexible overdrive
Our Take
The Santa Ana Overdrive V2 is a very clever drive pedal for players who like control without making things confusing.
The two voices cover tight rhythm drive and thicker lead tones, while the independent 3-band EQ gives you far more shaping power than a standard overdrive pedal. The option to place the EQ before or after the drive circuit is especially useful, because it lets the pedal behave in different ways depending on your amp, guitar and playing style.
For guitarists wanting a flexible, amp-like overdrive that can sit comfortably on a serious pedalboard, the Santa Ana V2 is a strong choice.
Looking to buy the Fender Santa Ana Overdrive V2? It’s available now at Colemans Music South Melbourne or online with Free Shipping Aus Wide. We’re a proudly independent, family owned Australian music store that knows gear and backs it with great service.
