Description

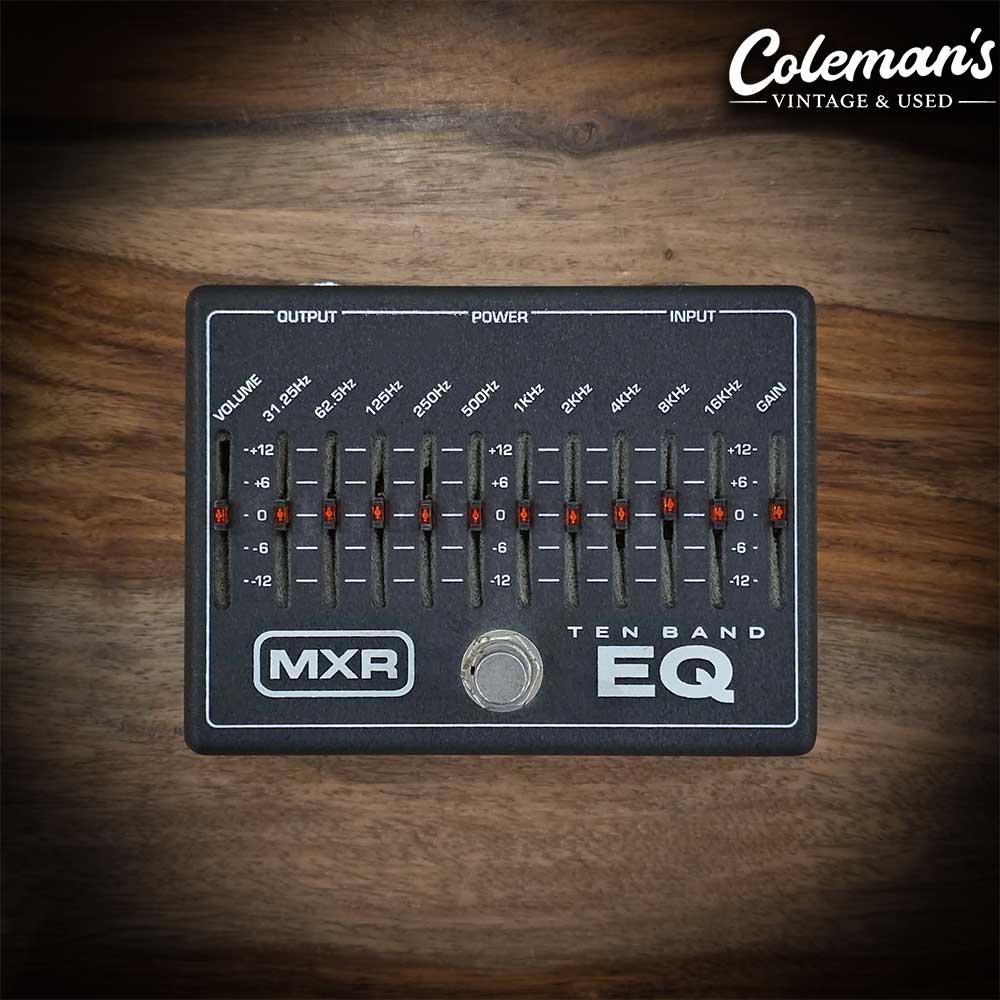

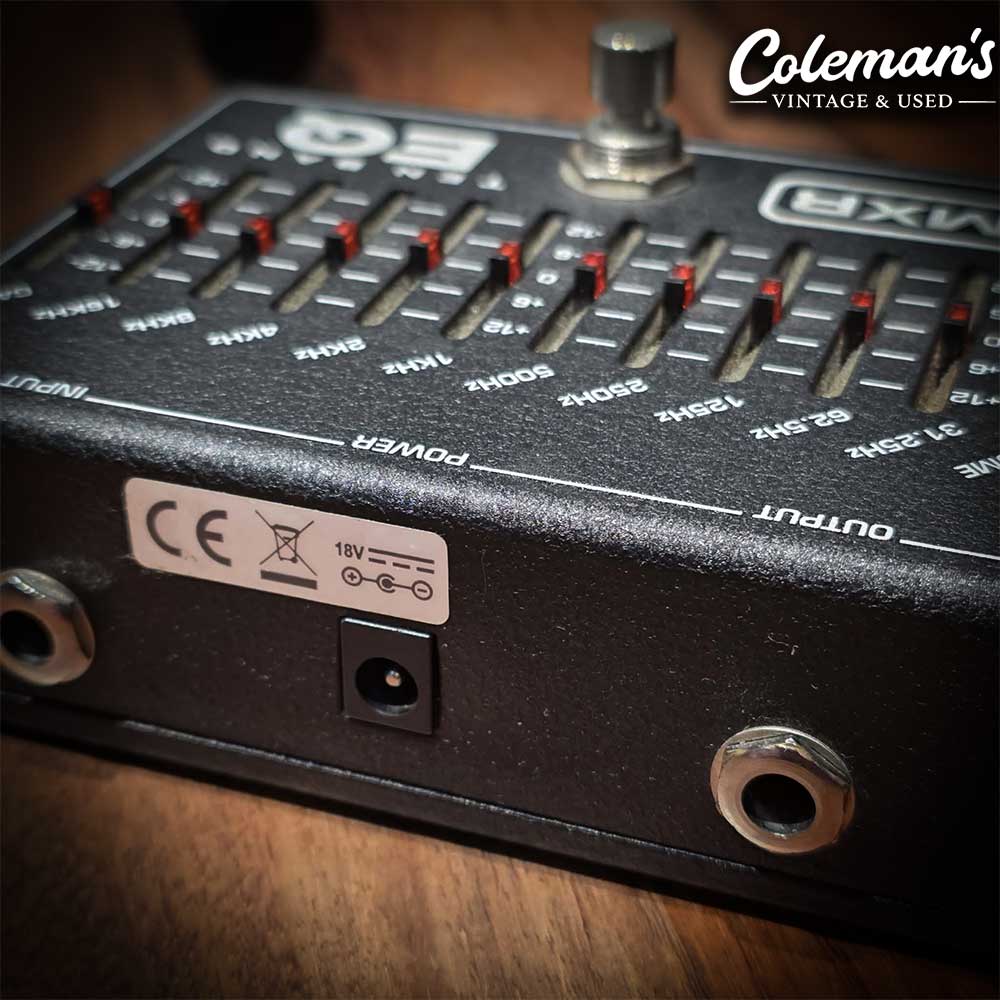

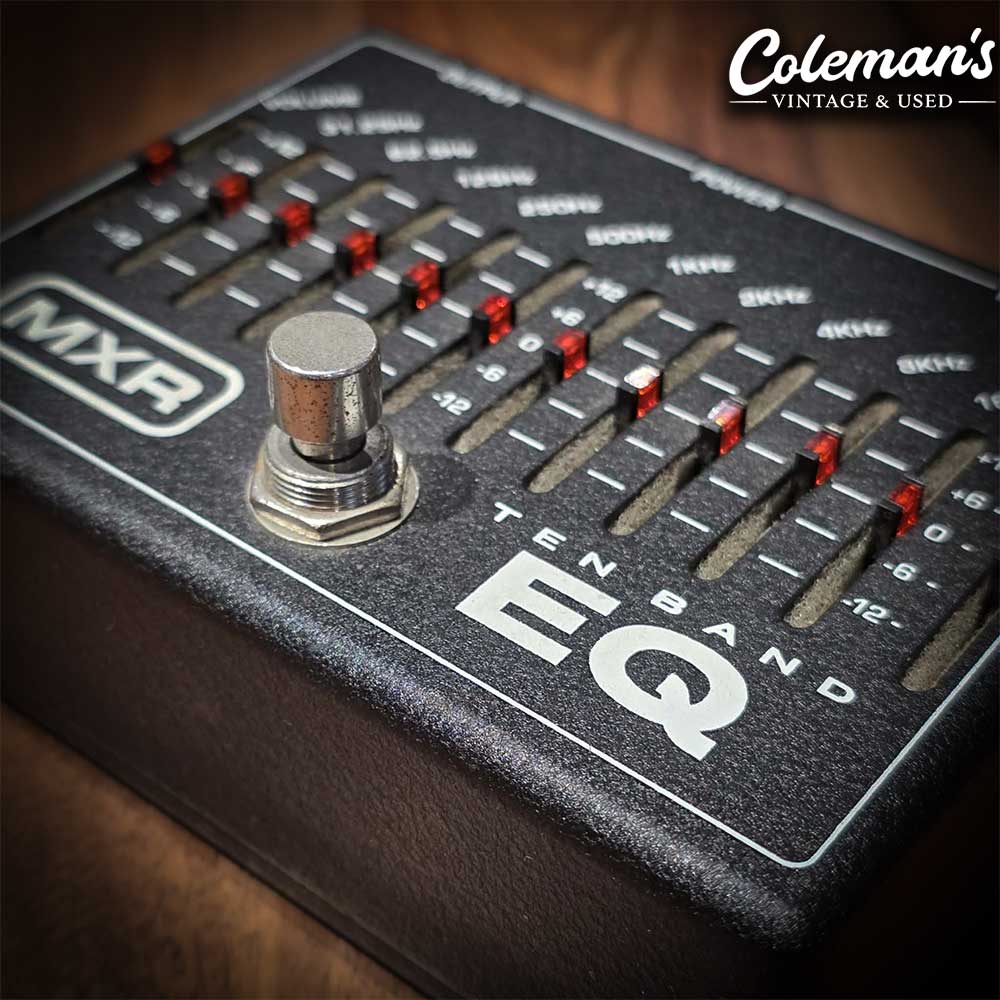

PRELOVED MXR 10 Band EQ Pedal
The MXR 10 Band EQ is one of the most useful tone-shaping pedals you can add to a guitar or bass rig. Whether you want to tighten low end, add midrange punch, tame harsh top end, boost solos or fine-tune your amp for different rooms, this pedal gives you serious control from the floor.
With 10 frequency bands, dedicated Volume and Gain sliders, and dual outputs for running two signal paths, the MXR 10 Band EQ is a practical tool for live players, recording setups and anyone who likes dialing in their tone properly.
Key Features
- MXR 10 Band Graphic EQ pedal
- 10 carefully selected frequency bands
- Up to ±12dB boost or cut per band
- Dedicated Volume slider
- Dedicated Gain slider
- Dual outputs for running two signal chains
- True hardwire bypass
- Noise-reduction circuitry
- Bright slider LEDs for easy stage visibility
- Great for guitar or bass
- Useful as an EQ, boost, tone-shaper or problem-solver in a rig
Controls
- Volume: adjusts overall effect output level
- Gain: adjusts input gain / boost level
- 31.25Hz: deep low-end shaping
- 62.5Hz: bass weight and thump
- 125Hz: low-end body
- 250Hz: low-mid warmth or mud control
- 500Hz: midrange body
- 1kHz: core midrange focus
- 2kHz: attack and presence
- 4kHz: bite and definition
- 8kHz: brightness and edge
- 16kHz: high-end air and sizzle
- Footswitch: turns the effect on or bypasses it
Specifications
- Model: MXR M108S / 10 Band EQ
- Effect Type: Graphic EQ
- EQ Bands: 31.25Hz, 62.5Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz
- Boost / Cut: ±12dB
- Controls: Volume, 10 EQ sliders, Gain
- Outputs: Output 1 and Output 2
- Bypass: True hardwire bypass
- Input Impedance: 470kΩ
- Output Impedance: 5kΩ
- Power: 18V DC power supply
- Current Draw: 48mA
Why Players Like It
The MXR 10 Band EQ is popular because it can fix or enhance almost any rig. Put it after drive pedals to shape distortion, in an effects loop to fine-tune your amp, or before an amp to push certain frequencies harder.
It is especially useful for tightening high-gain tones, boosting solos, balancing different guitars, cutting harsh frequencies, adding clarity to darker amps, or getting more punch from a bass setup.
Suggested Uses
- Tighten low end for heavy rhythm playing
- Add midrange push for solos
- Cut harsh highs from bright amps
- Shape drive pedals after distortion
- Use in an amp effects loop for broader tone control
- Run Output 2 to a second signal path or amp setup
- Boost overall level for lead parts
